DS8627

130/225 MHz Low Power Prescalers

National Semiconductor

DS8627 Features

* Y Y Y Input frequency 130 MHz (-4 -3) 225 mHz (-2 std) Low power 10 mA (-4 -2) 7 mA (-3 std) Input sensitivity 100 mVrms (-4 -3) 40 mVrms (-2 std) Logic and Connection Diagrams DS8627 ( d 24) TL F 5009

* 1 DS8628 ( d 20) TL F 5009

* 2 Dual-In-Line Package TL F 5009

* 3

DS8627 General Description

The DS8627 and DS8628 are low power fixed ratio prescalers which divide by 24 and 20 respectively The inputs can be driven either single or double-ended and they are buffered providing 40 100 mVrms input sensitivity The output provided is open-collector and is capable of interfacing with TTL and CMO.

DS8627 Datasheet (92.62 KB)

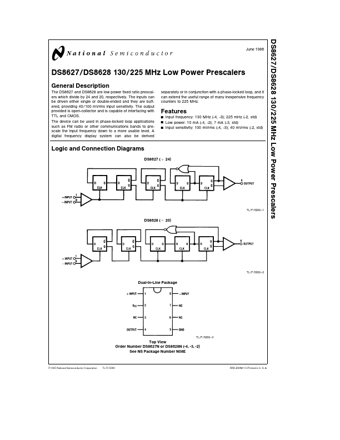

DS8627 Datasheet Preview — Preview of DS8627 PDF
