DS8616

130/225 MHz Low Power Dual Modulus Prescalers

DS8616 Features

* Y Y Y Y Y Input frequency 130 MHz (-4) 225 MHz (-2) Low power 10 mA (-4 -2) Input sensitivity 100 mVrms (-4) 40 mVrms (-2) Pin compatible with Motorola MC12015-16 prescalers Unregulated regulated power supply option Logic and Connection Diagrams Generalized d N N a 1 TL F 5240

* 1 Dual-I

DS8616 General Description

The DS8615 series products are low power dual modulus prescalers which divide by 32 33 and 40 41 respectively The modulus control (MC) input selects division by N when at a high TTL level and division by N a 1 when at a low TTL level The clock inputs are buffered providing 40 100 mVrms input sensiti.

DS8616 Datasheet (117.48 KB)

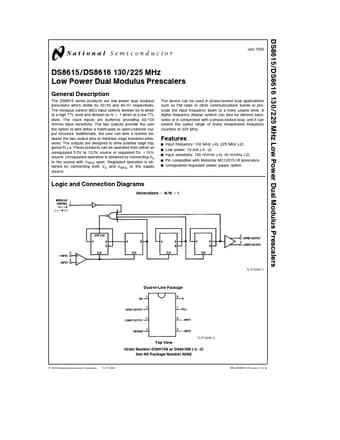

Preview of DS8616 PDF

Datasheet Details

Part number:

DS8616

Manufacturer:

National Semiconductor

File Size:

117.48 KB

Description:

130/225 mhz low power dual modulus prescalers.
DS8615 DS8616 130 225 MHz Low Power Dual Modulus Prescalers July 1992 DS8615 DS8616 130 225 MHz Low Power Dual Modulus Prescalers General Descriptio.
