DS8301A

400mA Low Dropout Voltage Linear Regulator

DS8301A Features

* 2.2μA Ground Current at no Load

* ±2% Output Accuracy

* 400mA Output Current

* 10nA Disable Current

* Wide Operating Input Voltage Range: 2V to 30V

* Dropout Voltage: 0.15V at 100mA / VOUT 5V

* Support Fixed Output Voltage 1.2V, 1.8V, 3.3V, 5V, 9V, 12V

* Adjustable

DS8301A General Description

The DS8301A series are a group of low-dropout ( LDO ) voltage regulators offering the benefits of wide input voltage range, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2.2µA makes these devices ideal for powering the battery-powered, always-on sy.

DS8301A Datasheet (774.61 KB)

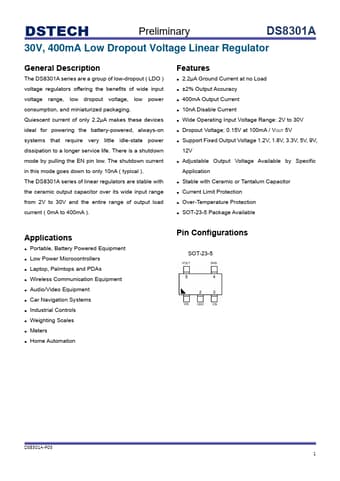

DS8301A Datasheet Preview — Preview of DS8301A PDF

Datasheet Details

Part number:

DS8301A

Manufacturer:

DSTECH

File Size:

774.61 KB

Description:

400ma low dropout voltage linear regulator.
