MAX13173E, MAX13171E Datasheet - Maxim Integrated Products

MAX13173E, MAX13171E, (MAX13171E - MAX13175E) Pin-Selectable Data Interface Chipset

19-4595; Rev 1; 7/09 Multiprotocol, Pin-Selectable Data Interface Chipset General .
The MAX13171E along with the MAX13173E/ MAX13175E, form a complete pin-selectable data terminal equipment (DTE) or data communication equipment (DCE).

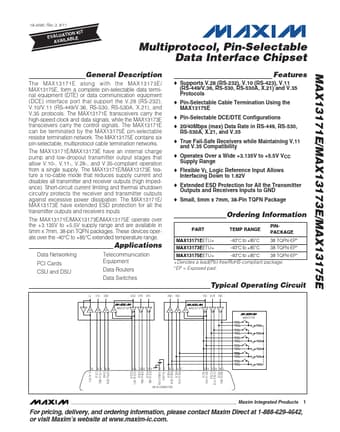

datasheet Preview Page 1 from Datasheet4u.com

MAX13171E_MaximIntegratedProducts.pdf

MAX13173E Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX13173E, MAX13171E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX13173E, MAX13171E

Manufacturer:

Maxim Integrated ↗ Products

File Size:

707.46 KB

Description:

(MAX13171E - MAX13175E) Pin-Selectable Data Interface Chipset

Note:

This datasheet PDF includes multiple part numbers: MAX13173E, MAX13171E.
Please refer to the document for exact specifications by model.

Features

* Supports V.28 (RS-232), V.10 (RS-423), V.11 (RS-449/V.36, RS-530, RS-530A, X.21) and V.35 Protocols
* Pin-Selectable Cable Termination Using the MAX13175E
* Pin-Selectable DCE/DTE Configurations
* 20/40Mbps (max) Data Rate in RS-449, RS-530, RS-530A, X.21, and V.35

Applications

* Data Networking PCI Cards CSU and DSU Telecommunication Equipment Data Routers Data Switches MAX13175EETU+ -40°C to +85°C 38 TQFN-EP
* +Denotes a lead(Pb)-free/RoHS-compliant package.
* EP = Exposed pad. Typical Operating Circuit LL CTS DSR DCD DTR RTS RXD RXC TXC SCTE TXD T4 R4 R3 R2 R
