MAX13174E Pin-Selectable Cable Terminator

The MAX13174E contains six pin-selectable, multiprotocol cable termination networks. Each network is capable of terminating V.11 (RS-422, RS-530, RS-530A, RS-449, V.36, and X.21) with a 100Ω differential load, V.35 with a T-network load, or V.28 (RS-232) and V.10 (RS-423) with an open-circuit load f.

MAX13174E Features

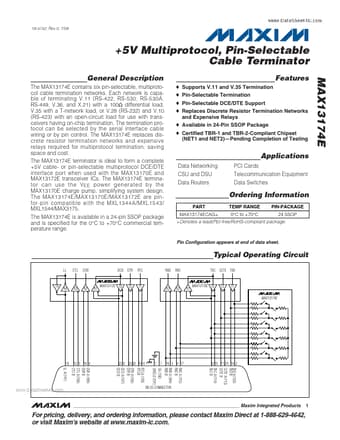

* MAX13174E Applications Data Networking CSU and DSU Data Routers PCI Cards Telecommunication Equipment Data Switches Ordering Information PART MAX13174ECAG+ TEMP RANGE 0°C to +70°C PIN-PACKAGE 24 SSOP +Denotes a lead(Pb)-free/RoHS-compliant package. Pin Configuration appears at end of data sheet

MAX13174E_MaximIntegratedProducts.pdf

Preview of MAX13174E PDF
MAX13174E Datasheet Preview Page 2 MAX13174E Datasheet Preview Page 3

Datasheet Details

Part number:

MAX13174E

Manufacturer:

Maxim Integrated ↗ Products

File Size:

571.68 KB

Description:

Pin-selectable cable terminator.
