MAX13488E, MAX13487E, Half-Duplex RS-485-/RS-422- Compatible Transceiver

MAX13487E/MAX13488E EVALUATION KIT AVAILABLE Half-Duplex RS-485-/RS-422Compatible Transceiver with AutoDirection Control General .
The MAX13487E/MAX13488E +5V, half-duplex, ±15kV ESD-protected RS-485/RS-422-compatible transceivers feature one driver and one receiver.

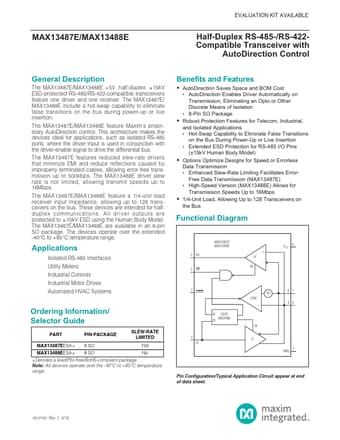

datasheet Preview Page 1 from Datasheet4u.com

MAX13487E_MaximIntegratedProducts.pdf

MAX13488E Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX13488E, MAX13487E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX13488E, MAX13487E

Manufacturer:

Maxim Integrated ↗ Products

File Size:

256.29 KB

Description:

Half-Duplex RS-485-/RS-422- Compatible Transceiver

Note:

This datasheet PDF includes multiple part numbers: MAX13488E, MAX13487E.
Please refer to the document for exact specifications by model.

Features

* reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free transmission up to 500kbps. The MAX13488E driver slew rate is not limited, allowing transmit speeds up to 16Mbps. The MAX13487E/MAX13488E feature a 1/4-unit load
