MAX1823H, MAX1823 - Dual USB Switch

MAX1823H Description

19-1903; Rev 3; 10/03 MAX1823/MAX1823A/MAX1823B/MAX1823H Dual USB Switch with Fault Blanking and Autoreset General .
The MAX1823 is a dual, current-limited switch with autoreset specifically made for USB applications.

MAX1823H Features

* to ensure that the USB port is protected. Built-in thermal-overload protection limits power dissipation and junction temperature. Accurate internal current-limiting circuitry protects the input supply against both overload and short-circuit conditions. Independent fault signals (FAULTA and FAULTB) n

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX1823H, MAX1823. Please refer to the document for exact specifications by model.

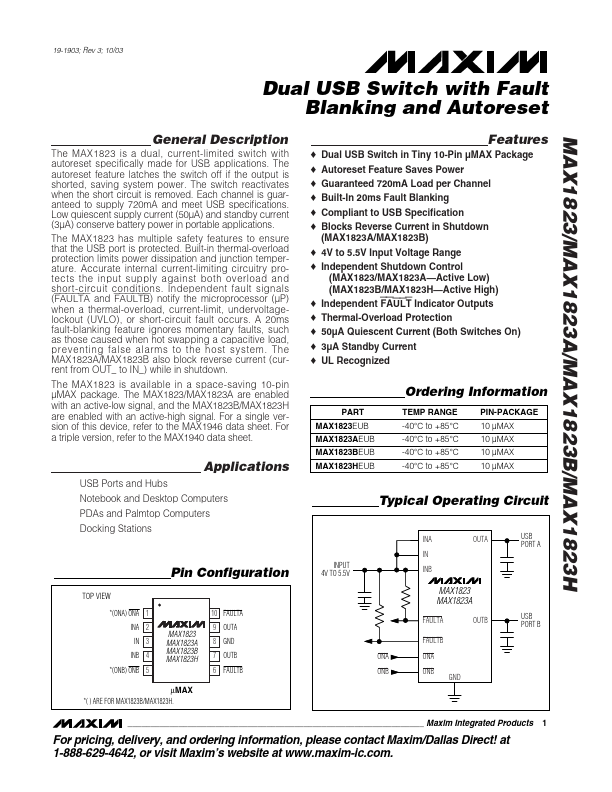

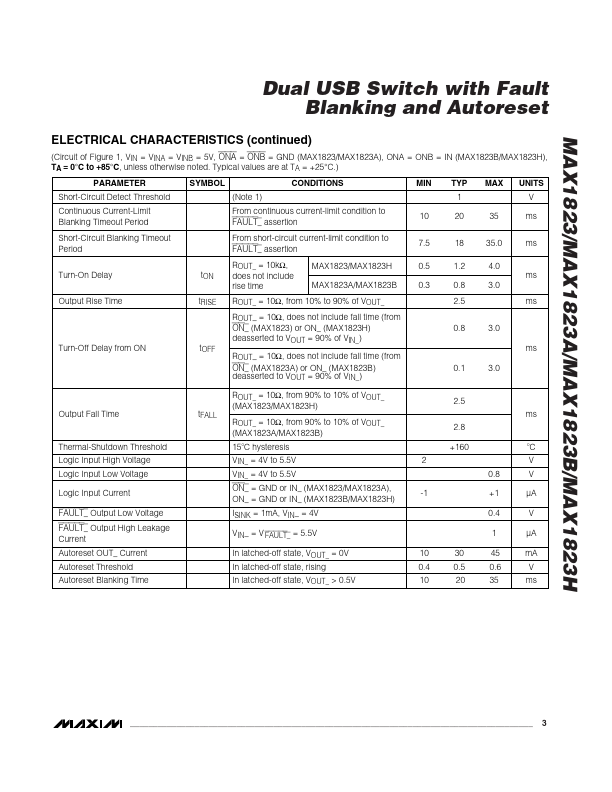

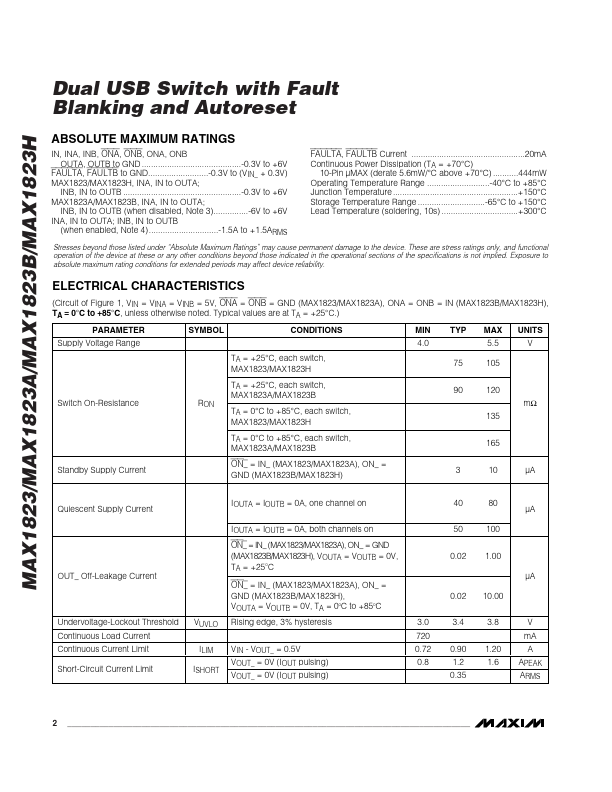

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX1823H, MAX1823
Manufacturer
Maxim Integrated ↗ Products
File Size
302.27 KB
Datasheet
MAX1823_MaximIntegratedProducts.pdf
Description
Dual USB Switch
Note
This datasheet PDF includes multiple part numbers: MAX1823H, MAX1823.
Please refer to the document for exact specifications by model.
