MAX3004

8-Channel Level Translators

Maxim Integrated Products

MAX3004 Features

* Guaranteed Data Rate Options 230kbps (MAX3000E) 4Mbps (MAX3001E) 20Mbps (MAX3002

* MAX3012)

* Bidirectional Level Translation Without Using a Directional Pin (MAX3000E/MAX3001E/MAX3002/ MAX3003)

* Unidirectional Level Translation (MAX3004

* MAX3012)

* Op

MAX3004 General Description

The MAX3000E/MAX3001E/MAX3002

*MAX3012 8-channel level translators provide the level shifting necessary to allow data transfer in a multivoltage system. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. Logic signals present on the VL side of the devi.

MAX3004 Datasheet (672.86 KB)

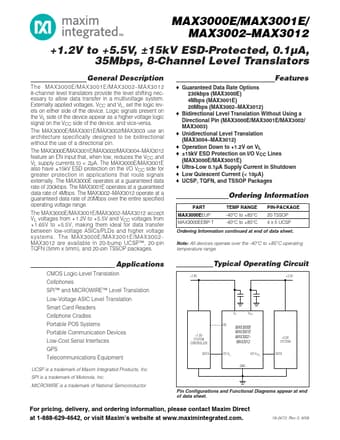

MAX3004 Datasheet Preview — Preview of MAX3004 PDF

Datasheet Details

Part number:

MAX3004

Manufacturer:

Maxim Integrated ↗ Products

File Size:

672.86 KB

Description:

8-channel level translators.
MAX3000E/MAX3001E/ AVAILABLE MAX3002

*MAX3012 +1.2V to +5.5V, ±15kV ESD-Protected, 0.1µA, 35Mbps, 8-Channel Level Translators General Descr.
