MAX30101 - High-Sensitivity Pulse Oximeter and Heart-Rate Sensor

Datasheet Summary

Description

The MAX30101 is an integrated pulse oximetry and heartrate monitor module.

with ambient light rejection.

Features

  • Heart-Rate Monitor and Pulse Oximeter Sensor in LED Reflective Solution.
  • Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module.
  • Integrated Cover Glass for Optimal, Robust Performance.
  • Ultra-Low-Power Operation for Mobile Devices.
  • Programmable Sample Rate and LED Current for Power Savings.
  • Low-Power Heart-Rate Monitor (< 1mW).
  • Ultra-Low Shutdown Current (0.7μA, typ).
  • Fast Data Output Capability.
  • High Sample Rates.
  • Robust Motion Ar.

📥 Download Datasheet

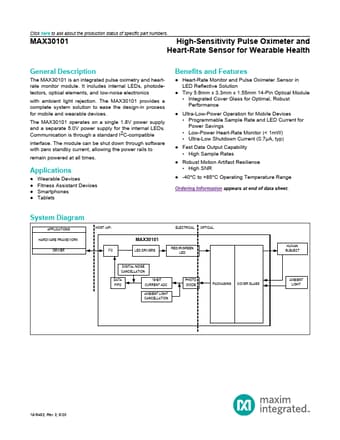

Datasheet preview – MAX30101

Datasheet Details

Part number MAX30101
Manufacturer Maxim Integrated
File Size 2.03 MB
Description High-Sensitivity Pulse Oximeter and Heart-Rate Sensor
Datasheet download datasheet MAX30101 Datasheet
Additional preview pages of the MAX30101 datasheet.

📁 Similar Datasheet

  • MAX3010 - 8-Channel Level Translators (Maxim Integrated Products)
  • MAX301 - High-Speed Analog Switches (Maxim)
  • MAX3011 - 8-Channel Level Translators (Maxim Integrated Products)
  • MAX3012 - 8-Channel Level Translators (Maxim Integrated Products)
  • MAX3013 - 8-Channel Level Translators (STMicroelectronics)
  • MAX30003 - Single-Channel Integrated Biopotential AFE (Analog Devices)
  • MAX30009 - Bioimpedance Analog Front-End (Analog Devices)
  • MAX3000E - +1.2V to +5.5V / 15kV ESD-Protected / 0.1A / 35Mbps / 8-Channel Level Translators (Maxim)
  • MAX3001E - 8-Channel Level Translators (Maxim Integrated Products)
  • MAX3002 - 8-Channel Level Translators (Maxim Integrated Products)
Other Datasheets by Maxim Integrated
  • MAX30100 - Pulse Oximeter and Heart-Rate Sensor
  • MAX30102 - High-Sensitivity Pulse Oximeter and Heart-Rate Sensor
  • MAX30105 - MAX30105 High-Sensitivity Optical Sensor
  • MAX30110 - Optimized Pulse-Oximeter and Heart-Rate AFE
  • MAX30112 - Optimized Pulse-Oximeter and Heart Rate AFE
  • MAX30001 - Single-Channel Integrated Biopotential and Bioimpedance AFE
  • MAX30002 - Single-Channel Integrated Bioimpedance AFE
  • MAX30003 - Ultra-Low Power Single-Channel Integrated Biopotential

Full PDF Text Transcription

Click to expand full text
Click here to ask about the production status of specific part numbers. MAX30101 High-Sensitivity Pulse Oximeter and Heart-Rate Sensor for Wearable Health General Description The MAX30101 is an integrated pulse oximetry and heartrate monitor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30101 provides a complete system solution to ease the design-in process for mobile and wearable devices. The MAX30101 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
