MAX30110 Datasheet, Afe, Maxim Integrated

MAX30110 Features

  • Afe
  • Reflective or Transmissive Heart Rate, Heart Rate Variability, or SpO2 Monitoring
  • Transmit Section
  • Two 8-bit LED Current DACs

PDF File Details

Part number:

MAX30110

Manufacturer:

Maxim Integrated ↗

File Size:

697.51kb

Download:

📄 Datasheet

Description:

Optimized pulse-oximeter and heart-rate afe. The MAX30110 is a complete optical pulse oximetry and heart rate detection integrated analog front-end. The MAX30110 has a high-resol

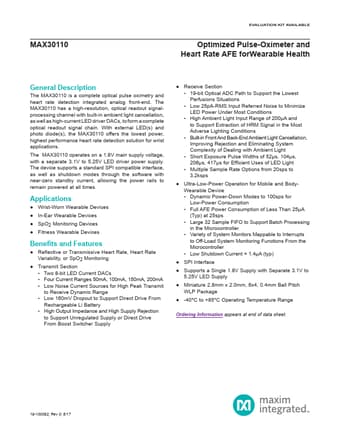

Datasheet Preview: MAX30110 📥 Download PDF (697.51kb)
Page 2 of MAX30110 Page 3 of MAX30110

MAX30110 Application

  • Applications The MAX30110 operates on a 1.8V main supply voltage, with a separate 3.1V to 5.25V LED driver power supply. The device supports a stan
