MAX3010 Datasheet - Maxim Integrated Products

MAX3010 - 8-Channel Level Translators

The MAX3000E/MAX3001E/MAX3002 *MAX3012 8-channel level translators provide the level shifting necessary to allow data transfer in a multivoltage system.

Externally applied voltages, VCC and VL, set the logic levels on either side of the device.

Logic signals present on the VL side of the devi

MAX3010 Features

* Guaranteed Data Rate Options 230kbps (MAX3000E) 4Mbps (MAX3001E) 20Mbps (MAX3002

* MAX3012)

* Bidirectional Level Translation Without Using a Directional Pin (MAX3000E/MAX3001E/MAX3002/ MAX3003)

* Unidirectional Level Translation (MAX3004

* MAX3012)

* Op

MAX3010_MaximIntegratedProducts.pdf

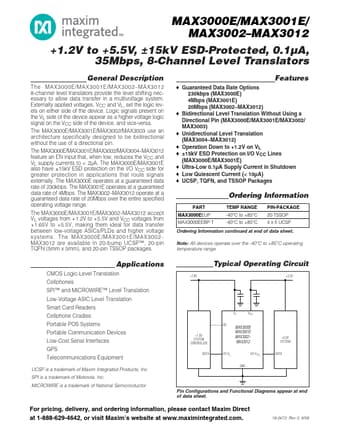

Preview of MAX3010 PDF
