MAX3341E

+-15kV ESD-Protected USB Level Translator in UCSP with USB Detect

MAX3341E Features

* ±15kV ESD Protection On D+ and DComplies with USB Standard 1.1 (Full Speed 2.0) USB Skew Independent of Input Skew Separate VP and VM Inputs/Outputs VL Down to 1.8V Allows Connection with LowVoltage ASICs Reenumerate with Power Applied USB Detect Function Allows Single-Ended or Differential Logic I/

MAX3341E General Description

The MAX3341E USB level translator converts logic-level signals to USB signals, and USB signals to logic-level signals. An internal 1.5kΩ USB termination resistor supports full-speed (12Mbps) USB operation. The MAX3341E provides built-in ±15kV ESD-protection circuitry on the USB I/O pins, D+ and D-, .

MAX3341E Datasheet (371.94 KB)

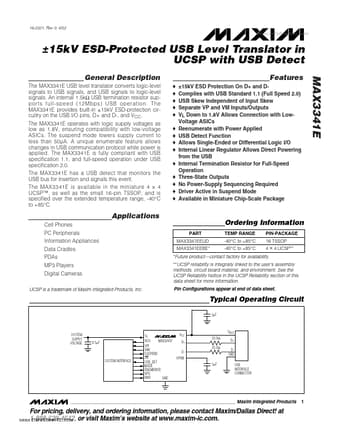

Preview of MAX3341E PDF

Datasheet Details

Part number:

MAX3341E

Manufacturer:

Maxim Integrated ↗ Products

File Size:

371.94 KB

Description:

+-15kv esd-protected usb level translator in ucsp with usb detect.
