MAX3313E - RS-232-Compatible Transceivers

This page provides the datasheet information for the MAX3313E, a member of the MAX3311E RS-232-Compatible Transceivers family.

Datasheet Summary

Description

The MAX3311E/MAX3313E are low-power, 5V EIA/TIA232-compatible transceivers.

All transmitter outputs and receiver inputs are protected to ±15kV using the Human Body Model, making these devices ideal for applications where more robust transceivers are required.

Features

  • a 1µA shutdown mode. In shutdown the device turns off the charge pump, pulls V- to ground, and the transmitter output is disabled. The MAX3313E features an.

📥 Download Datasheet

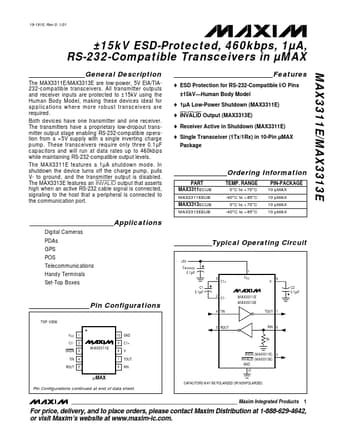

Datasheet preview – MAX3313E

Datasheet Details

Part number MAX3313E
Manufacturer Maxim Integrated
File Size 110.21 KB
Description RS-232-Compatible Transceivers
Datasheet download datasheet MAX3313E Datasheet
Additional preview pages of the MAX3313E datasheet.

📁 Similar Datasheet

  • MAX3313 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers (Maxim)
  • MAX331 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers (Maxim)
  • MAX3311 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers (Maxim)
  • MAX3311E - RS-232-Compatible Transceivers (Maxim)
  • MAX3314 - 460kbps / 1A / RS-232-Compatible Transceiver (Maxim)
  • MAX3314E - 15kV ESD-Protected / 460kbps / 1A / RS-232-Compatible Transceiver (Maxim)
  • MAX3316 - 15kV ESD-Protected / 2.5V / 1A / 460kbps / RS-232 Compatible Transceivers (Maxim)
  • MAX3316E - 15kV ESD-Protected / 2.5V / 1A / 460kbps / RS-232 Compatible Transceivers (Maxim)
  • MAX3317 - 2.5V / 1A / 460kbps / RS-232-Compatible Transceivers (Maxim)
  • MAX3318 - 2.5-V 460-kbps RS-232 TRANSCEIVER WITH +/-15-kV ESD PROTECTION MAX3318 (Rev. A) (ETCTI)
Other Datasheets by Maxim Integrated
  • MAX3317E - RS-232 Compatible Transceivers
  • MAX3318E - RS-232 Compatible Transceivers
  • MAX3319E - RS-232 Compatible Transceivers
  • MAX3320B - up to 250kbps True RS-232 Transceiver
  • MAX3320L - up to 250kbps True RS-232 Transceiver
  • MAX3320T - up to 250kbps True RS-232 Transceiver
  • MAX333A - CMOS Analog Switch
  • MAX3371 - Low-Voltage Level Translators

Full PDF Text Transcription

Click to expand full text
19-1910; Rev 0; 1/01 MAX3311E/MAX3313E ±15kV ESD-Protected, 460kbps, 1µA, RS-232-Compatible Transceivers in µMAX General Description The MAX3311E/MAX3313E are low-power, 5V EIA/TIA232-compatible transceivers. All transmitter outputs and receiver inputs are protected to ±15kV using the Human Body Model, making these devices ideal for applications where more robust transceivers are required. Both devices have one transmitter and one receiver. The transmitters have a proprietary low-dropout transmitter output stage enabling RS-232-compatible operation from a +5V supply with a single inverting charge pump. These transceivers require only three 0.1µF capacitors and will run at data rates up to 460kbps while maintaining RS-232-compatible output levels.
