MAX3319E - RS-232 Compatible Transceivers

This page provides the datasheet information for the MAX3319E, a member of the MAX3316E RS-232 Compatible Transceivers family.

Datasheet Summary

Description

The MAX3316E

MAX3319E are 2.5V powered RS-232 compatible transceivers.

These devices feature shutdown (MAX3317E), AutoShutdown Plus™ (MAX3318E/ MAX3319E), and enhanced electrostatic discharge (ESD) protection integrated into the chip.

Features

  • a 1µA shutdown mode that can be entered by driving SHDN low. The MAX3317E’s receivers remain active while in shutdown mode, allowing external devices such as modems to be monitored using only 1µA supply current. These devices are available in space-saving packages: MAX3316E (16-pin SSOP and 20-pin TSSOP), MAX3317E/ MAX3318E (20-pin SSOP and 20-pin TSSOP), and MAX3319E (16-pin SSOP). ________________________.

📥 Download Datasheet

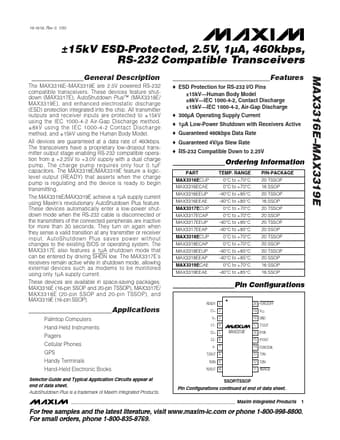

Datasheet preview – MAX3319E

Datasheet Details

Part number MAX3319E
Manufacturer Maxim Integrated
File Size 190.61 KB
Description RS-232 Compatible Transceivers
Datasheet download datasheet MAX3319E Datasheet
Additional preview pages of the MAX3319E datasheet.

📁 Similar Datasheet

  • MAX3319 - 2.5V / 1A / 460kbps / RS-232-Compatible Transceivers (Maxim)
  • MAX331 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers (Maxim)
  • MAX3311 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers (Maxim)
  • MAX3311E - RS-232-Compatible Transceivers (Maxim)
  • MAX3313 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers (Maxim)
  • MAX3314 - 460kbps / 1A / RS-232-Compatible Transceiver (Maxim)
  • MAX3314E - 15kV ESD-Protected / 460kbps / 1A / RS-232-Compatible Transceiver (Maxim)
  • MAX3316 - 15kV ESD-Protected / 2.5V / 1A / 460kbps / RS-232 Compatible Transceivers (Maxim)
  • MAX3316E - 15kV ESD-Protected / 2.5V / 1A / 460kbps / RS-232 Compatible Transceivers (Maxim)
  • MAX3317 - 2.5V / 1A / 460kbps / RS-232-Compatible Transceivers (Maxim)
Other Datasheets by Maxim Integrated
  • MAX3313E - RS-232-Compatible Transceivers
  • MAX3317E - RS-232 Compatible Transceivers
  • MAX3318E - RS-232 Compatible Transceivers
  • MAX3320B - up to 250kbps True RS-232 Transceiver
  • MAX3320L - up to 250kbps True RS-232 Transceiver
  • MAX3320T - up to 250kbps True RS-232 Transceiver
  • MAX333A - CMOS Analog Switch
  • MAX3371 - Low-Voltage Level Translators

Full PDF Text Transcription

Click to expand full text
19-1616; Rev 0; 1/00 MAX3316E–MAX3319E ±15kV ESD-Protected, 2.5V, 1µA, 460kbps, RS-232 Compatible Transceivers _______________General Description The MAX3316E–MAX3319E are 2.5V powered RS-232 compatible transceivers. These devices feature shutdown (MAX3317E), AutoShutdown Plus™ (MAX3318E/ MAX3319E), and enhanced electrostatic discharge (ESD) protection integrated into the chip. All transmitter outputs and receiver inputs are protected to ±15kV using the IEC 1000-4-2 Air-Gap Discharge method, ±8kV using the IEC 1000-4-2 Contact Discharge method, and ±15kV using the Human Body Model. All devices are guaranteed at a data rate of 460kbps. The transceivers have a proprietary low-dropout transmitter output stage enabling RS-232 compatible operation from a +2.25V to +3.
