MAX3314 - 460kbps / 1A / RS-232-Compatible Transceiver

Datasheet Summary

Description

The MAX3314 is a ±5V powered EIA/TIA-232-compatible interface.

It has one transmitter and one receiver in a flow-through architecture.

The transmitter has a lowdropout output stage providing minimum RS-232-compatible ±3.7V output levels while driving 3k Ω and 1000pf at 460kbps.

Features

  • o 1µA Low-Power Shutdown with Receiver Active MAX3314 Ordering Information PART MAX3314CKA MAX3314CUA MAX3314CSA MAX3314EKA MAX3314EUA MAX3314ESA TEMP. RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C to +85°C -40°C to +85°C -40°C to +85°C PIN-.

📥 Download Datasheet

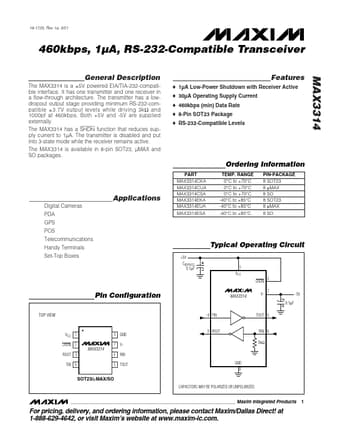

Datasheet preview – MAX3314

Datasheet Details

Part number MAX3314
Manufacturer Maxim
File Size 196.38 KB
Description 460kbps / 1A / RS-232-Compatible Transceiver
Datasheet download datasheet MAX3314 Datasheet
Additional preview pages of the MAX3314 datasheet.

📁 Similar Datasheet

  • MAX3313E - RS-232-Compatible Transceivers (Maxim Integrated)
  • MAX3317E - RS-232 Compatible Transceivers (Maxim Integrated)
  • MAX3318 - 2.5-V 460-kbps RS-232 TRANSCEIVER WITH +/-15-kV ESD PROTECTION MAX3318 (Rev. A) (ETCTI)
  • MAX3318E - RS-232 Compatible Transceivers (Maxim Integrated)
  • MAX3318E - 2.5-V 460-KBPS RS-232 TRANSCEIVER WITH +/-15-kV ESD PROTECTION MAX3318E (Rev. A) (ETCTI)
  • MAX3319E - RS-232 Compatible Transceivers (Maxim Integrated)
  • MAX3301E - (MAX3301E / MAX3302E) USB On-the-Go Transceiver and Charge Pump (Maxim Integrated Products)
  • MAX3302E - (MAX3301E / MAX3302E) USB On-the-Go Transceiver and Charge Pump (Maxim Integrated Products)
  • MAX3320B - up to 250kbps True RS-232 Transceiver (Maxim Integrated)
  • MAX3320L - up to 250kbps True RS-232 Transceiver (Maxim Integrated)
Other Datasheets by Maxim
  • MAX3314E - 15kV ESD-Protected / 460kbps / 1A / RS-232-Compatible Transceiver
  • MAX331 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers
  • MAX3311 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers
  • MAX3311E - RS-232-Compatible Transceivers
  • MAX3313 - 460kbps / 1A Supply Current / RS-232-Compatible Transceivers
  • MAX3316 - 15kV ESD-Protected / 2.5V / 1A / 460kbps / RS-232 Compatible Transceivers
  • MAX3316E - 15kV ESD-Protected / 2.5V / 1A / 460kbps / RS-232 Compatible Transceivers
  • MAX3317 - 2.5V / 1A / 460kbps / RS-232-Compatible Transceivers

Full PDF Text Transcription

Click to expand full text
19-1725; Rev 1a; 3/01 460kbps, 1µA, RS-232-Compatible Transceiver General Description The MAX3314 is a ±5V powered EIA/TIA-232-compatible interface. It has one transmitter and one receiver in a flow-through architecture. The transmitter has a lowdropout output stage providing minimum RS-232-compatible ±3.7V output levels while driving 3k Ω and 1000pf at 460kbps. Both +5V and -5V are supplied externally. The MAX3314 has a SHDN function that reduces supply current to 1µA. The transmitter is disabled and put into 3-state mode while the receiver remains active. The MAX3314 is available in 8-pin SOT23, µMAX and SO packages.
