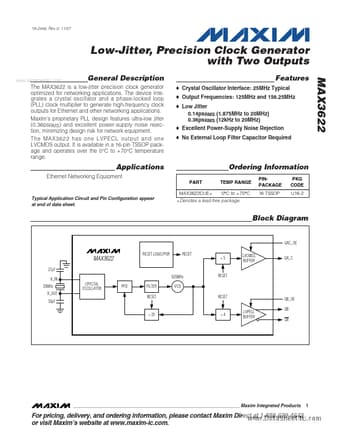

MAX3622 Datasheet, Generator, Maxim Integrated Products

MAX3622 Features

• Generator
• Crystal Oscillator Interface: 25MHz Typical
• Output Frequencies: 125MHz and 156.25MHz
• Low Jitter 0.14psRMS (1.875MHz to 20MHz) 0.36psRMS (12kHz to 20MHz)

PDF File Details

Part number:

MAX3622

Manufacturer:

Maxim Integrated ↗ Products

File Size:

233.12kb

Download:

📄 Datasheet

Description:

Precision clock generator. Features

Crystal Oscillator Interface: 25MHz Typical

Output Frequencies: 125MHz and 156.25MHz

Low Jitt

MAX3622 Application

• Applications The device integrates a crystal oscillator and a phase-locked loop (PLL) clock multiplier to generate high-frequency clock outputs for
