MAX364

Precision / Quad / SPST Analog Switches

MAX364 Features

* o Low On Resistance: < 45Ω Typical (85Ω Max) o Guaranteed Matched On Resistance Between Channels: < 2Ω o Guaranteed Flat On Resistance over Full Analog Signal Range: ∆9Ω Max o Guaranteed Charge Injection: < 10pC o Guaranteed Off-Channel Leakage: < 4nA at +85°C o ESD Guaranteed > 2000V per Method 301

MAX364 General Description

The MAX364/MAX365 are precision, quad, single-pole single-throw (SPST) analog switches. The MAX364 has four normally closed (NC), and the MAX365 has four normally open (NO) switches. Both parts offer lowchannel on resistance (less than 85Ω), guaranteed to match within 2Ω between channels and to rema.

MAX364 Datasheet (352.90 KB)

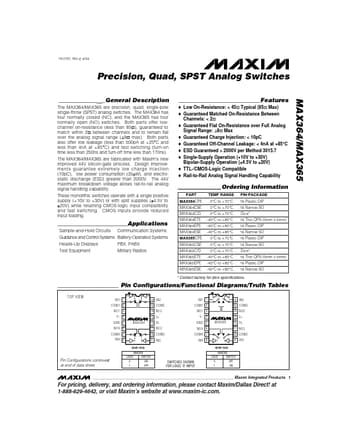

Preview of MAX364 PDF

Datasheet Details

Part number:

MAX364

Manufacturer:

Maxim

File Size:

352.90 KB

Description:

Precision / quad / spst analog switches.
