MAX3645, 125Mbps to 200Mbps Limiting Amplifier

www.DataSheet4U.com 19-3026; Rev 0; 10/03 +2.97V to +5.5V, 125Mbps to 200Mbps Limiting Amplifier with Loss-of-Signal Detector General .
The MAX3645 limiting amplifier functions as a data quantizer and is pin compatible with the Mindspeed MC2045-2 and MC2045-2Y postamplifiers.

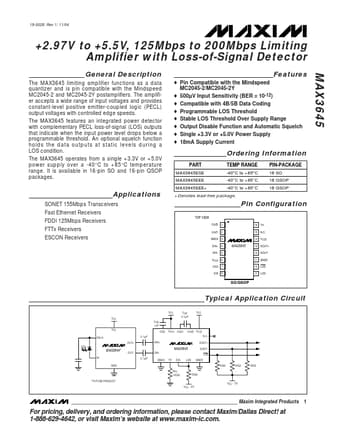

datasheet Preview Page 1 from Datasheet4u.com

MAX3645_MaximIntegratedProducts.pdf

MAX3645 Datasheet Preview — Preview of MAX3645 PDF

Datasheet Details

Part number:

MAX3645

Manufacturer:

Maxim Integrated ↗ Products

File Size:

221.58 KB

Description:

125Mbps to 200Mbps Limiting Amplifier

Features

* an integrated power detector with complementary PECL loss-of-signal (LOS) outputs that indicate when the input power level drops below a programmable threshold. An optional squelch function holds the data outputs at static levels during a LOS condition. The MAX3645 operates from a single +3.3V or +5

Applications

* SONET 155Mbps Transceivers Fast Ethernet Receivers FDDI 125Mbps Receivers FTTx Receivers ESCON Receivers TOP VIEW CAZ2 1 CAZ1 2 GNDA 3 DIN+ 4 DIN- 5 VCCA 6 CSD 7 DIS 8 Pin Configuration 16 TH 15 N. C. 14 VCCE MAX3645 13 DOUT+ 12 DOUT11 GNDE 10 LOS 9 LOS SO/QSOP Typical Application Circuit VCC V
