MAX3646, 155Mbps to 622Mbps Sff/sfp Laser Driver

www.DataSheet4U.com 19-3161; Rev 1; 7/04 KIT ATION EVALU E L B A AVAIL 155Mbps to 622Mbps SFF/SFP Laser Driver with Extinction Ratio Control General.
Features. Single +3. 47mA Power-Supply Current. 85mA Modulation Current. 100mA Bias Current.

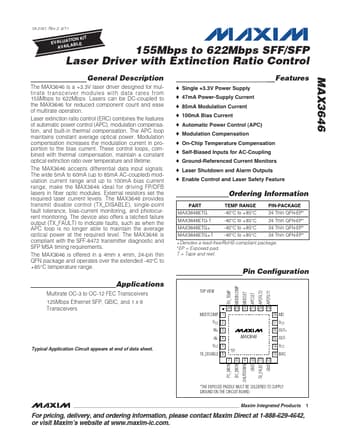

datasheet Preview Page 1 from Datasheet4u.com

MAX3646_MaximIntegratedProducts.pdf

MAX3646 Datasheet Preview — Preview of MAX3646 PDF

Datasheet Details

Part number:

MAX3646

Manufacturer:

Maxim Integrated ↗ Products

File Size:

277.52 KB

Description:

155Mbps to 622Mbps Sff/sfp Laser Driver

Features

* Single +3.3V Power Supply
* 47mA Power-Supply Current
* 85mA Modulation Current
* 100mA Bias Current
* Automatic Power Control (APC)
* Modulation Compensation
* On-Chip Temperature Compensation
* Self-Biased Inputs for AC-Coupling

Applications

* Multirate OC-3 to OC-12 FEC Transceivers 125Mbps Ethernet SFP, GBIC, and 1 x 9 Transceivers MODTCOMP 1 VCC 2 IN+ 3 IN- 4 VCC 5 TX_DISABLE 6 24 23 21 MAX3646 THE EXPOSED PADDLE MUST BE SOLDERED TO SUPPLY GROUND ON THE CIRCUIT BOARD. Typical Application Circuit appears at end of data sheet. ___
