MAX4357 - 32 X 16 Nonblocking Video Crosspoint Switch

Datasheet Summary

Description

The MAX4357 is a 32 ✕ 16 highly integrated video crosspoint switch matrix with input and output buffers.

This device operates from dual ±3V to ±5V supplies or from a single +5V supply.

Digital logic is supplied from an independent single +2.7V to +5.5V supply.

Features

  • o 32 ✕ 16 Nonblocking Matrix with Buffered Inputs and Outputs o Operates from a ±3V, ±5V, or +5V Supply o Each Output Individually Addressable o Individually Programmable Output Buffer Gain (AV = +1V/V or +2V/V) o High-Impedance Output Disable for Wired-OR Connections o 0.1dB Gain Flatness to 12MHz o Minimum -62dB Crosstalk, -110dB Isolation at 6MHz o 0.05%/0.1° Differential Gain/Differential Phase Error o Low 220mW Power Consumption (0.43mW per Point) MAX4357 Ordering Information PART MAX4357.

📥 Download Datasheet

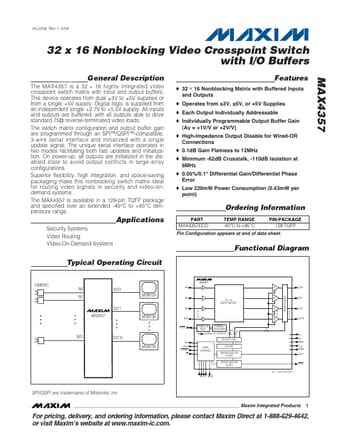

Datasheet preview – MAX4357

Datasheet Details

Part number MAX4357
Manufacturer Maxim Integrated Products
File Size 809.26 KB
Description 32 X 16 Nonblocking Video Crosspoint Switch
Datasheet download datasheet MAX4357 Datasheet
Additional preview pages of the MAX4357 datasheet.

📁 Similar Datasheet

  • MAX435 - Wideband Trasconductance Amplifiers (Maxim)
  • MAX4352 - Single-Supply Op Amps (Maxim)
  • MAX4353 - Single-Supply Op Amps (Maxim Integrated)
  • MAX4354 - Single-Supply Op Amps (Maxim Integrated)
  • MAX4358 - 32 x 16 Nonblocking Video Crosspoint Switch with On-Screen Display Insertion and I/O Buffers (Maxim)
  • MAX4359 - Video Crosspoint Switches (Maxim)
  • MAX430 - 15V Chopper-Stabilized Operational Amplifier (Maxim)
  • MAX4304 - Op Amps (Maxim)
  • MAX4305 - Op Amps (Maxim)
  • MAX4308 - Ultra-Low-Distortion Op Amps (Maxim Integrated)
Other Datasheets by Maxim Integrated Products
  • MAX4355 - 16x16 Nonblocking Video Crosspoint Switch
  • MAX4372F - High-Side Current-Sense Amplifier
  • MAX4372H - High-Side Current-Sense Amplifier
  • MAX4397 - Audio/Video Switch For Dual SCART Connectors
  • MAX4004 - High-Side Current Monitors
  • MAX4006 - High-Side Current Monitors
  • MAX4007 - High-Side Current Monitors
  • MAX4008 - High-Side Current Monitors

Full PDF Text Transcription

Click to expand full text
19-2209; Rev 0; 10/01 www.DataSheet4U.com 32 x 16 Nonblocking Video Crosspoint Switch with I/O Buffers General Description The MAX4357 is a 32 ✕ 16 highly integrated video crosspoint switch matrix with input and output buffers. This device operates from dual ±3V to ±5V supplies or from a single +5V supply. Digital logic is supplied from an independent single +2.7V to +5.5V supply. All inputs and outputs are buffered, with all outputs able to drive standard 75Ω reverse-terminated video loads. The switch matrix configuration and output buffer gain are programmed through an SPI/QSPI™-compatible, three-wire serial interface and initialized with a single update signal. The unique serial interface operates in two modes facilitating both fast updates and initialization.
