MAX4701 (MAX4699 - MAX4702) Dual DPDT/Quad SPDT Analog Switches

The MAX4699/MAX4701/MAX4702 are low-voltage, single-supply CMOS analog switches. The MAX4699/ MAX4701 are dual double-pole/double-throw (DPDT) switches with two control inputs that control two single-pole/double-throw (SPDT) switches each. The MAX4702 is a quad SPDT switch with one control input and.

MAX4701 Features

* 3mm x 3mm and 4mm x 4mm 16-Pin TQFN Packages MAX4699/MAX4701/MAX4702 Ordering Information PART MAX4699ETE+ MAX4701ETE+ MAX4702ETE+ TEMP RANGE PIN-PACKAGE -40°C to +85°C 16 TQFN-EP

* (4mm x 4mm) -40°C to +85°C 16 TQFN-EP

* (3mm x 3mm) -40°C to +85°C 16 TQFN-EP

* (3mm x 3mm) Appl

MAX4699_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX4701, MAX4699. Please refer to the document for exact specifications by model.

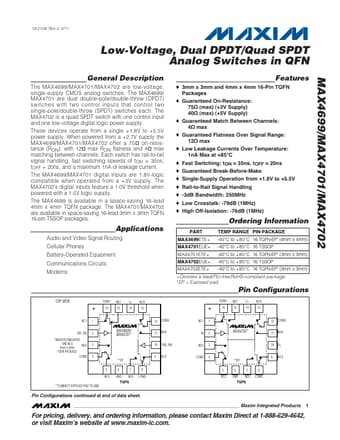

MAX4701 Datasheet Preview Page 2 MAX4701 Datasheet Preview Page 3
