MAX4702

(MAX4699 - MAX4702) Dual DPDT/Quad SPDT Analog Switches

MAX4702 Features

* 3mm x 3mm and 4mm x 4mm 16-Pin TQFN Packages MAX4699/MAX4701/MAX4702 Ordering Information PART MAX4699ETE+ MAX4701ETE+ MAX4702ETE+ TEMP RANGE PIN-PACKAGE -40°C to +85°C 16 TQFN-EP

* (4mm x 4mm) -40°C to +85°C 16 TQFN-EP

* (3mm x 3mm) -40°C to +85°C 16 TQFN-EP

* (3mm x 3mm) Appl

MAX4702 General Description

The MAX4699/MAX4701/MAX4702 are low-voltage, single-supply CMOS analog switches. The MAX4699/ MAX4701 are dual double-pole/double-throw (DPDT) switches with two control inputs that control two single-pole/double-throw (SPDT) switches each. The MAX4702 is a quad SPDT switch with one control input and.

MAX4702 Datasheet (206.56 KB)

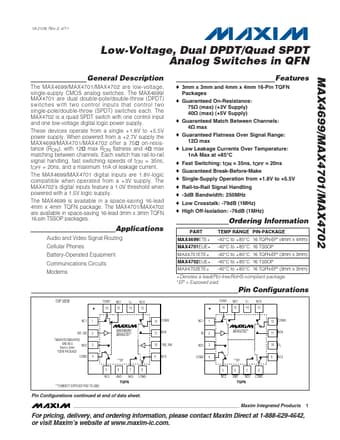

Preview of MAX4702 PDF
