MAX5070, (MAX5070 / MAX5071) Current-Mode PWM Controllers

19-3283; Rev 3; 10/06 www.DataSheet4U.com High-Performance, Single-Ended, Current-Mode PWM Controllers General .
The MAX5070/MAX5071 BiCMOS, high-performance, current-mode PWM controllers have all the features required for wide input voltage range isolated/noniso.

MAX5070_MaximIntegratedProducts.pdf

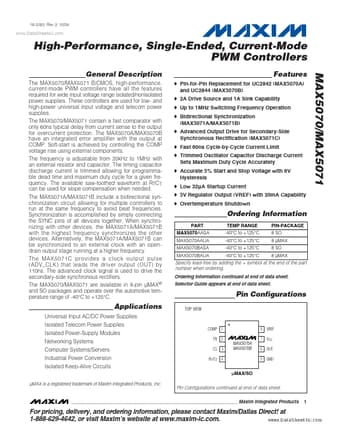

MAX5070 Datasheet Preview — Preview of MAX5070 PDF

Datasheet Details

Part number:

MAX5070

Manufacturer:

Maxim Integrated ↗ Products

File Size:

413.44 KB

Description:

(MAX5070 / MAX5071) Current-Mode PWM Controllers

Features

* required for wide input voltage range isolated/nonisolated power supplies. These controllers are used for low- and high-power universal input voltage and telecom power supplies. The MAX5070/MAX5071 contain a fast comparator with only 60ns typical delay from current sense to the output for overcurren

Applications

* Universal Input AC/DC Power Supplies Isolated Telecom Power Supplies Isolated Power-Supply Modules Networking Systems Computer Systems/Servers Industrial Power Conversion Isolated Keep-Alive Circuits COMP 1 8 7 VREF VCC OUT GND FB 2 CS 3 MAX5070A MAX5070B 6 5 RT/CT 4 µMAX/SO µMAX is a regis
