MAX5090C, MAX5090A - High-Efficiency MAXPower Step-Down DC-DC Converters

Maxim Integrated Products

📥 Download Datasheet

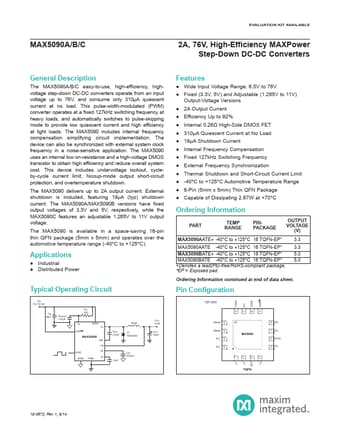

MAX5090C Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX5090C, MAX5090A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MAX5090C, MAX5090A
Manufacturer: Maxim Integrated ↗ Products
File Size: 539.55 KB
Datasheet: MAX5090A_MaximIntegratedProducts.pdf
Description: High-Efficiency MAXPower Step-Down DC-DC Converters
Note: This datasheet PDF includes multiple part numbers: MAX5090C, MAX5090A.
Please refer to the document for exact specifications by model.

MAX5090C Product details

Features

Wide Input Voltage Range: 6.5V to 76V.
Fixed (3.3V, 5V) and Adjustable (1.265V to 11V) Output-Voltage Versions.
2A Output Current.
Efficiency Up to 92%.
Internal 0.26Ω High-Side DMOS FET.
310µA Quiescent Current at No Load.
19µA Shutdown Current Internal Frequency Compensation Fixed 127kHz Switching Frequency External Frequency Synchronization Thermal Shutdown and Short-Circuit Current Limit.
