MAX5483, MAX5481 - 10-Bit / Nonvolatile - Linear-Taper Digital Potentiometers

MAX5483 Description

19-3708; Rev 3; 4/07 www.DataSheet4U.com 10-Bit, Nonvolatile, Linear-Taper Digital Potentiometers General .
The MAX5481. MAX5484 10-bit (1024-tap) nonvolatile, linear-taper, programmable voltage-dividers and variable resistors perform the function of.

MAX5483 Features

* 1024 Tap Positions
* Power-On Recall of Wiper Position from Nonvolatile Memory
* 16-Pin (3mm x 3mm x 0.8mm) TQFN or 14-Pin TSSOP Package
* 35ppm/°C End-to-End Resistance Temperature Coefficient
* 5ppm/°C Ratiometric Temperature Coefficient
* 10kΩ and

MAX5483 Applications

* requiring digitally controlled potentiometers. Two end-toend resistance values are available (10kΩ and 50kΩ) in a voltage-divider or a variable-resistor configuration (see the Selector Guide). The nominal resistor temperature coefficient is 35ppm/°C end-to-end, and only 5ppm/°C ratiometric, making t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX5483, MAX5481. Please refer to the document for exact specifications by model.

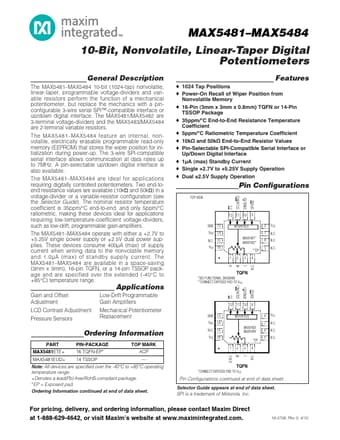

datasheet Preview Page 2 datasheet Preview Page 3
