MAX5480 - 8-Bit Parallel DAC in QSOP-16 Package

MAX5480 Description

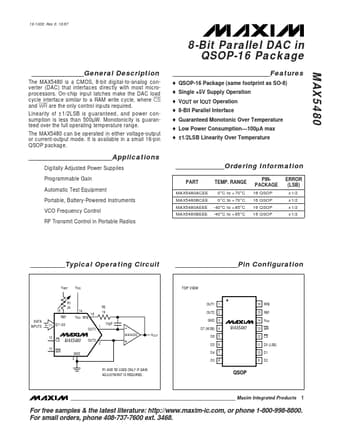

19-1300; Rev 0; 10/97 8-Bit Parallel DAC in QSOP-16 Package _______________General .
The MAX5480 is a CMOS, 8-bit digital-to-analog converter (DAC) that interfaces directly with most microprocessors.

MAX5480 Features

* o QSOP-16 Package (same footprint as SO-8) o Single +5V Supply Operation o VOUT or IOUT Operation o 8-Bit Parallel Interface o Guaranteed Monotonic Over Temperature o Low Power Consumption

MAX5480 Applications

* Digitally Adjusted Power Supplies Programmable Gain Automatic Test Equipment Portable, Battery-Powered Instruments VCO Frequency Control RF Transmit Control in Portable Radios ______________Ordering Information PART MAX5480ACEE MAX5480BCEE MAX5480AEEE MAX5480BEEE TEMP. RANGE 0°C to +70°C 0°C to +70
