MAX5893

12-Bit/ 500Msps Interpolating and Modulating Dual DAC with CMOS Inputs

MAX5893 Features

* a fIM/4 digital image-reject modulator. This modulator generates a quadrature-modulated IF signal that can be presented to an analog I/Q modulator to complete the upconversion process. A second digital modulation mode allows the signal to be frequency-translated with image pairs at fIM/2 or fIM/4. T

MAX5893 General Description

The MAX5893 programmable interpolating, modulating, 500Msps, dual digital-to-analog converter (DAC) offers superior dynamic performance and is optimized for highperformance wideband, single-carrier transmit applications. The device integrates a selectable 2x/4x/8x interpolating filter, a digital qua.

MAX5893 Datasheet (331.57 KB)

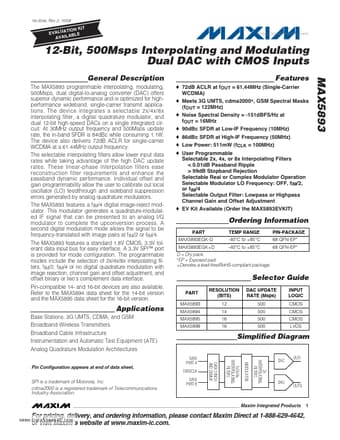

Preview of MAX5893 PDF

Datasheet Details

Part number:

MAX5893

Manufacturer:

Maxim Integrated ↗ Products

File Size:

331.57 KB

Description:

12-bit/ 500msps interpolating and modulating dual dac with cmos inputs.
19-3546; Rev 2; 10/08 KIT ATION EVALU E L B A AVAIL www.DataSheet4U.com 12-Bit, 500Msps Interpolating and Modulating Dual DAC with CMOS Inputs Gene.
