MAX6602 - Five-Channel Precision Temperature Monitor

MAX6602 Description

www.DataSheet4U.com 19-0620; Rev 0; 7/06 Five-Channel Precision Temperature Monitor General .
The MAX6602 precision multichannel temperature sensor monitors its own temperature and the temperatures of up to four external diode-connected transis.

MAX6602 Features

* Four Thermal-Diode Inputs Local Temperature Sensor 1°C Remote Temperature Accuracy (+60°C to +100°C) Temperature Monitoring Begins at POR for FailSafe System Protection ALERT and OVERT Outputs for Interrupts, Throttling, and Shutdown STBY Input for Hardware Standby Mode Small, 16-Pin TSSOP Package 2

MAX6602 Applications

* Desktop Computers Notebook Computers Workstations Servers SMBus is a trademark of Intel Corp. Pin Configuration appears at end of data sheet. +Denotes lead-free package. Typical Application Circuit +3.3V CPU 1 2200pF 2 3 2200pF 4 5 2200pF 6 7 2200pF 8 DXN4 STBY 9 DXN3 DXP4 OVERT 11 N. C. 10 TO SYST

📥 Download Datasheet

Preview of MAX6602 PDF

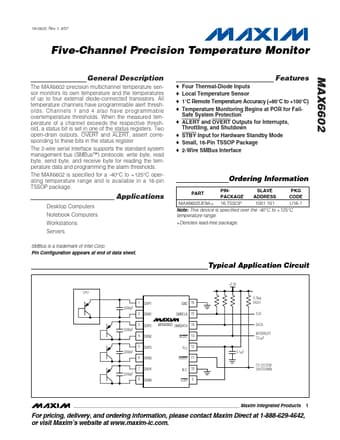

datasheet Preview Page 2 datasheet Preview Page 3
