MAX660CSA, MAX660 Datasheet - Maxim Integrated

MAX660CSA CMOS Monolithic Voltage Converter

The MAX660 monolithic, charge-pump voltage inverter converts a +1.5V to +5.5V input to a corresponding -1.5V to -5.5V output. Using only two low-cost capacitors, the charge pump’s 100mA output replaces switching regulators, eliminating inductors and their associated cost, size, and EMI. Greater than.

MAX660CSA Features

* ® Small Capacitors ® 0.65V Typ Loss at 100mA Load ® Low 120µA Operating Current ® 6.5Ω Typ Output Impedance ® Guaranteed ROUT < 15W for C1 = C2 = 10mF ® Pin-Compatible High-Current ICL7660 Upgrade ® Inverts or Doubles Input Supply Voltage ® Selectable Oscillator Frequency: 10kHz/80kHz ® 88% Typ Conv

MAX660_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX660CSA, MAX660. Please refer to the document for exact specifications by model.

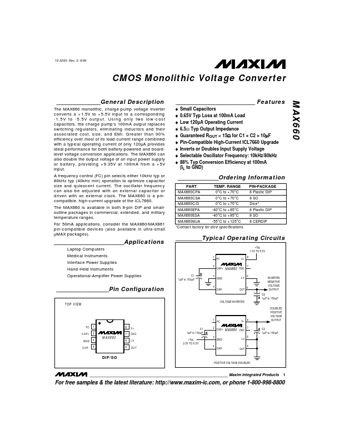

MAX660CSA Datasheet Preview Page 2 MAX660CSA Datasheet Preview Page 3

Datasheet Details

Part number:

MAX660CSA, MAX660

Manufacturer:

Maxim Integrated ↗

File Size:

108.36 KB

Description:

Cmos monolithic voltage converter.

Note:

This datasheet PDF includes multiple part numbers: MAX660CSA, MAX660.
Please refer to the document for exact specifications by model.
