MAX660MJA - CMOS Monolithic Voltage Converter

This page provides the datasheet information for the MAX660MJA, a member of the MAX660 CMOS Monolithic Voltage Converter family.

Datasheet Summary

Description

The MAX660 monolithic, charge-pump voltage inverter converts a +1.5V to +5.5V input to a corresponding -1.5V to -5.5V output.

Using only two low-cost capacitors, the charge pump’s 100mA output replaces switching regulators, eliminating inductors and their associated cost, size, and EMI.

Features

  • ® Small Capacitors ® 0.65V Typ Loss at 100mA Load ® Low 120µA Operating Current ® 6.5Ω Typ Output Impedance ® Guaranteed ROUT < 15W for C1 = C2 = 10mF ® Pin-Compatible High-Current ICL7660 Upgrade ® Inverts or Doubles Input Supply Voltage ® Selectable Oscillator Frequency: 10kHz/80kHz ® 88% Typ Conversion Efficiency at 100mA (IL to GND) ______________Ordering Information PART TEMP. RANGE MAX660CPA 0°C to +70°C MAX660CSA 0°C to +70°C MAX660C/D 0°C to +70°C MAX660EPA -40°C to +85°C MAX6.

📥 Download Datasheet

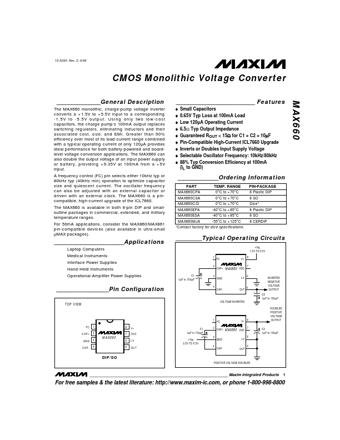

Datasheet preview – MAX660MJA

Datasheet Details

Part number MAX660MJA
Manufacturer Maxim Integrated
File Size 108.36 KB
Description CMOS Monolithic Voltage Converter
Datasheet download datasheet MAX660MJA Datasheet
Additional preview pages of the MAX660MJA datasheet.

📁 Similar Datasheet

  • MAX660 - Switched Capacitor Voltage Converter (Texas Instruments)
  • MAX660 - Switched Capacitor Voltage Converter (National Semiconductor)
  • MAX660 - CMOS Monolithic Voltage Converter (Maxim)
  • MAX6602 - Five-Channel Precision Temperature Monitor (Maxim Integrated Products)
  • MAX6603 - Platinum RTD-to-Voltage Signal Conditioner (Maxim Integrated Products)
  • MAX6605 - Low-Power Analog Temperature Sensor (Maxim)
  • MAX6607 - Low-Voltage Analog Temperature Sensors (Maxim)
  • MAX6608 - Low-Voltage Analog Temperature Sensors (Maxim)
  • MAX6610 - Precision / Low-Power / 6-Pin SOT23 Temperature Sensors and Voltage References (Maxim)
  • MAX6611 - Precision / Low-Power / 6-Pin SOT23 Temperature Sensors and Voltage References (Maxim)
Other Datasheets by Maxim Integrated
  • MAX660CPA - CMOS Monolithic Voltage Converter
  • MAX660CSA - CMOS Monolithic Voltage Converter
  • MAX660EPA - CMOS Monolithic Voltage Converter
  • MAX660ESA - CMOS Monolithic Voltage Converter
  • MAX66242 - DeepCover Secure Authenticator
  • MAX6628 - Accurate Digital Temperature Sensors
  • MAX66300 - DeepCover Secure Authenticator
  • MAX6660 - Remote Junction Temperature Controlled Fan Speed Regulator

Full PDF Text Transcription

Click to expand full text
19-3293; Rev. 2; 9/96 CMOS Monolithic Voltage Converter MAX660 _______________General Description The MAX660 monolithic, charge-pump voltage inverter converts a +1.5V to +5.5V input to a corresponding -1.5V to -5.5V output. Using only two low-cost capacitors, the charge pump’s 100mA output replaces switching regulators, eliminating inductors and their associated cost, size, and EMI. Greater than 90% efficiency over most of its load-current range combined with a typical operating current of only 120µA provides ideal performance for both battery-powered and boardlevel voltage conversion applications. The MAX660 can also double the output voltage of an input power supply or battery, providing +9.35V at 100mA from a +5V input.
