MAX8677C Datasheet - Maxim Integrated Products

1.5A Dual-Input USB/AC Adapter Charger and Smart Power Selector

MAX8677C Features

* a Smart Power Selector to make the best use of limited USB or adapter power. The battery charge current and input current limit are independently set up to 1.5A and 2A, respectively. Input power not used by the system charges the battery. USB input current can be set to 100mA or 500mA. Automatic inp

MAX8677C General Description

The MAX8677C is an integrated 1-cell Li+ charger and Smart Power Selector™ with dual (DC and USB) power inputs. It can operate with either separate inputs for USB and AC adapter power *, or from a single input that accepts both. All power switches for charging and switching the load between batte.

MAX8677C Datasheet (388.92 KB)

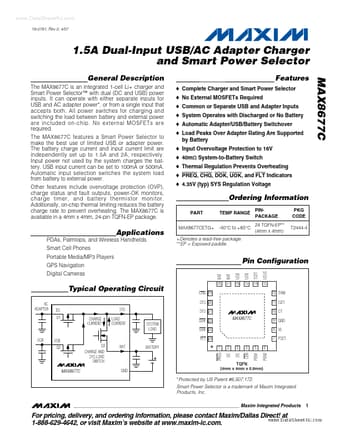

Preview of MAX8677C PDF

Datasheet Details

Part number:

MAX8677C

Manufacturer:

Maxim Integrated ↗ Products

File Size:

388.92 KB

Description:

1.5a dual-input usb/ac adapter charger and smart power selector.
