MAX867 Datasheet - Maxim

3.3V/5V or Adjustable-Output / Single-Cell DC-DC Converters

MAX867 Features

* o 0.8V to 6.0V Input Supply Voltage o 0.9V Guaranteed Start-Up Supply Voltage o >80% Efficiency Over Wide Load Range o 100µA No-Load Battery Current (VOUT = 3.3V) o 1µA Shutdown Mode o Up to 250kHz Switching Frequency o ±1.5% Reference Tolerance o Low-Battery Detector (LBI/LBO) o Available in Ultra-

MAX867 General Description

The MAX866 and MAX867 are ultra-small, high-efficiency, CMOS, step-up, DC-DC switching regulators for 1-cell battery-powered systems. The MAX866 accepts a positive input voltage between 0.8V and VOUT and converts it to a higher, pin-selectable output voltage of 3.3V or 5V. The MAX867 adjustable vers.

MAX867 Datasheet (139.76 KB)

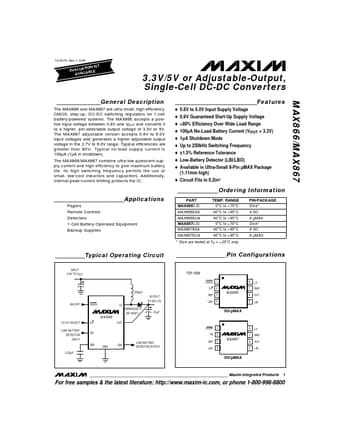

MAX867 Datasheet Preview — Preview of MAX867 PDF

Datasheet Details

Part number:

MAX867

Manufacturer:

Maxim

File Size:

139.76 KB

Description:

3.3v/5v or adjustable-output / single-cell dc-dc converters.
