MAX9210

Programmable DC-Balance 21-Bit Deserializers

MAX9210 Features

* Programmable DC Balance or Non-DC Balance

* DC Balance Allows AC-Coupling for Wider Input Common-Mode Voltage Range

* As Low as 8MHz Operation (MAX9210/MAX9212/MAX9220)

* Falling-Edge Output Strobe (MAX9220/MAX9222)

* Slower Output Transitions for Reduced EM

MAX9210 General Description

The MAX9210/MAX9212/MAX9214/MAX9216/MAX9220/ MAX9222 deserialize three LVDS serial data inputs into 21 single-ended LVCMOS/LVTTL outputs. A parallel rate LVDS clock received with the LVDS data streams provides timing for deserialization. The outputs have a separate supply, allowing 1.8V to 5V output.

MAX9210 Datasheet (402.43 KB)

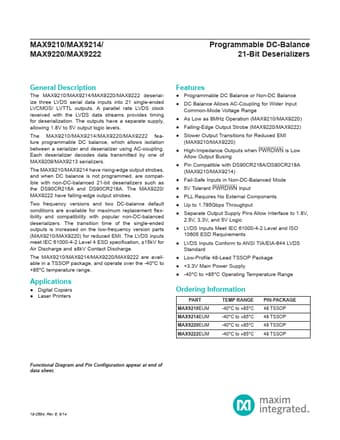

Preview of MAX9210 PDF

Datasheet Details

Part number:

MAX9210

Manufacturer:

Maxim Integrated ↗ Products

File Size:

402.43 KB

Description:

Programmable dc-balance 21-bit deserializers.
