Description

www.DataSheet4U.com 19-2828; Rev 2; 2/04 Programmable DC-Balanced 21-Bit Serializers General .
The MAX9209/MAX9211/MAX9213/MAX9215 serialize 21 bits of LVTTL/LVCMOS parallel input data to three LVDS outputs.

📥 Download Datasheet

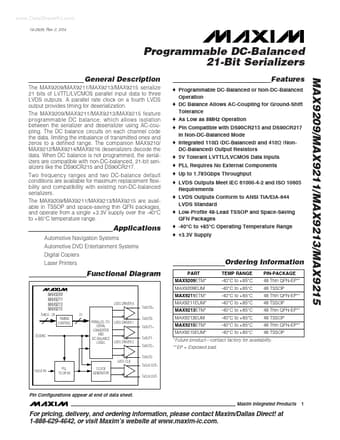

MAX9211 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX9211, MAX9209. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MAX9211, MAX9209
Manufacturer: Maxim Integrated ↗ Products
File Size: 501.14 KB
Datasheet: MAX9209_MaximIntegratedProducts.pdf
Description: Programmable DC-Balanced 21-Bit Serializers
Note: This datasheet PDF includes multiple part numbers: MAX9211, MAX9209.
Please refer to the document for exact specifications by model.

Features

* Programmable DC-Balanced or Non-DC-Balanced Operation
* DC Balance Allows AC-Coupling for Ground-Shift Tolerance
* As Low as 8MHz Operation
* Pin Compatible with DS90CR215 and DS90CR217 in Non-DC-Balanced Mode
* Integrated 110Ω (DC-Balanced) and 410Ω (NonDC-

Applications

* Automotive Navigation Systems Automotive DVD Entertainment Systems Digital Copiers Laser Printers Ordering Information Functional Diagram PART MAX9209ETM
* MAX9209EUM TEMP RANGE -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°
