MAX9248 Datasheet - Maxim Integrated Products

MAX9248 2.5MHz to 42MHz DC-Balanced LVDS Deserializers

The MAX9248/MAX9250 digital video serial-to-parallel converters deserialize a total of 27 bits during data and control phases. In the data phase, the LVDS serial input is converted to 18 bits of parallel video data and in the control phase, the input is converted to 9 bits of parallel control data. .

MAX9248 Features

* spread-spectrum capability, allowing output data and clock to spread over a specified frequency range to reduce EMI. The data and clock outputs are programmable for a spectrum spread of ±4% or ±2%. The MAX9250 features output enable input cont

MAX9248_MaximIntegratedProducts.pdf

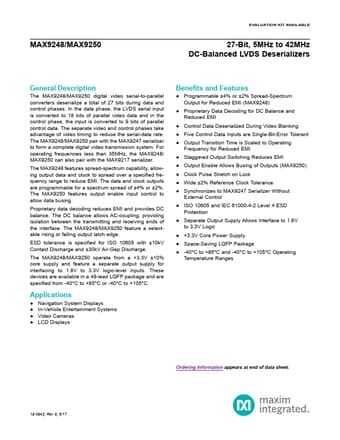

Preview of MAX9248 PDF
MAX9248 Datasheet Preview Page 2 MAX9248 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX9248

Manufacturer:

Maxim Integrated ↗ Products

File Size:

483.23 KB

Description:

2.5mhz to 42mhz dc-balanced lvds deserializers.
