MAX9921, 2-Wire Hall-Effect Sensor Interface

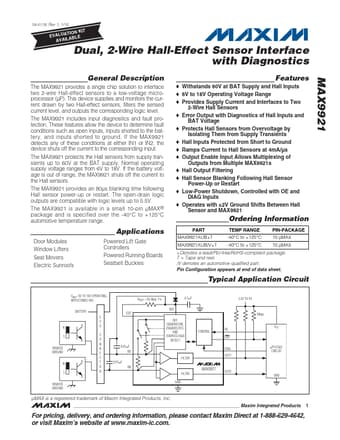

19-4119; Rev 0; 6/08 Dual, 2-Wire Hall-Effect Sensor Interface with Diagnostics www.datasheet4u.com General .
Features. Withstands 60V at BAT Supply and Hall Inputs. 6V to 18V Operating Voltage Range. Provides Supply Current and Int.

datasheet Preview Page 1 from Datasheet4u.com

MAX9921_MaximIntegratedProducts.pdf

MAX9921 Datasheet Preview — Preview of MAX9921 PDF

Datasheet Details

Part number:

MAX9921

Manufacturer:

Maxim Integrated ↗ Products

File Size:

178.17 KB

Description:

2-Wire Hall-Effect Sensor Interface

Features

* Withstands 60V at BAT Supply and Hall Inputs
* 6V to 18V Operating Voltage Range
* Provides Supply Current and Interfaces to Two 2-Wire Hall Sensors
* Error Output with Diagnostics of Hall Inputs and BAT Voltage
* Protects Hall Sensors from Overvoltage by Is

Applications

* Door Modules Window Lifters Seat Movers Electric Sunroofs Powered Lift Gate Controllers Powered Running Boards Seatbelt Buckles PART MAX9921AUB+T Ordering Information TEMP RANGE -40°C to +125°C PIN-PACKAGE 10 µMAX +Denotes a lead-free package. T = Tape and reel. Pin Configuration appears at end o
