MAX9923 Datasheet, Amplifiers, Maxim Integrated Products

MAX9923 Features

• Amplifiers
• Ultra-Precision VOS Over Temperature MAX9922: ±10µV (max) MAX9923T: ±25µV (max) MAX9923H: ±20µV (max) MAX9923F: ±10µV (max)
• ±0.5% (max) Full-Scale Gain Accuracy

PDF File Details

Part number:

MAX9923

Manufacturer:

Maxim Integrated ↗ Products

File Size:

339.98kb

Download:

📄 Datasheet

Description:

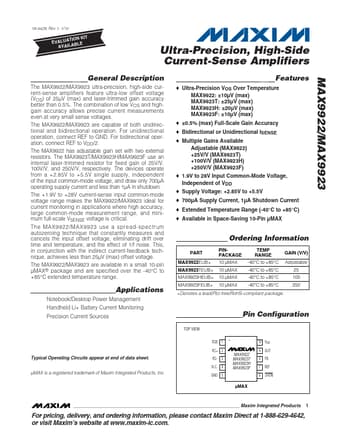

High-side current-sense amplifiers. MAX9922/MAX9923 The MAX9922/MAX9923 ultra-precision, high-side current-sense amplifiers feature ultra-low offset voltage (VOS) of 2

MAX9923 Application

• Applications where high accuracy, large common-mode measurement range, and minimum full-scale VSENSE voltage is critical. The MAX9922/MAX9923 use a
