MAX992 Datasheet, Comparators, Maxim

MAX992 Features

  • Comparators
  • 120ns Propagation Delay
  • 48µA Quiescent Supply Current
  • +2.5V to +5.5V Single-Supply Operation
  • Common-Mode Input Voltage Range Extends 250mV Beyon

PDF File Details

Part number:

MAX992

Manufacturer:

Maxim

File Size:

1.65MB

Download:

📄 Datasheet

Description:

High-speed / micropower / low-voltage / sot23 / rail-to-rail i/o comparators. The MAX987/MAX988/MAX991/MAX992/MAX995/ MAX996 single/dual/quad micropower comparators feature low-voltage operation and rail-to-rail

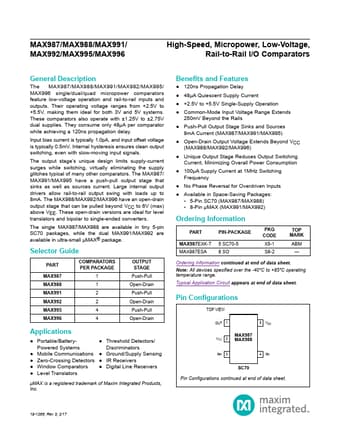

Datasheet Preview: MAX992 📥 Download PDF (1.65MB)
Page 2 of MAX992 Page 3 of MAX992

MAX992 Application

  • Applications Portable/BatteryPowered Systems Mobile Communications Zero-Crossing Detectors Window Comparators Level Translators Threshold Detector
