MX636 - True RMS-to-DC Converters

Maxim Integrated Products

Datasheet Details

Part number	MX636
Manufacturer	Maxim Integrated Products
File Size	123.94 KB
Description	True RMS-to-DC Converters
Datasheet	MX636_MaximIntegratedProducts.pdf

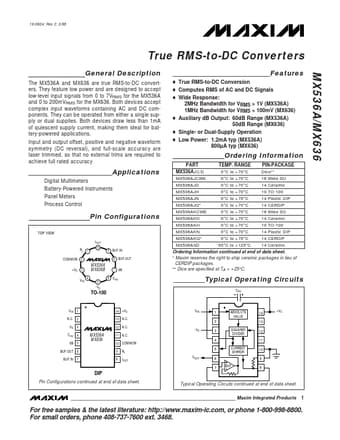

The MX536A and MX636 are true RMS-to-DC converters.

o True RMS-to-DC Conversion o Computes RMS of AC and DC Signals o Wide Response: 2MHz Bandwidth for VRMS > 1V (MX536A) 1MHz Bandwidth for VRMS > 100mV (MX636) o Auxiliary dB Output: 60dB Range (MX536A) 50dB Range (MX636) o Single- or Dual-Supply Operation o Low Power: 1.2mA typ (MX536A) 800µA typ (MX636) MX536A/MX636 Ordering Information PART MX536AJC/D MX536AJCWE MX536AJD MX536AJH MX536AJN MX536AJQ.
MX536AKCWE MX536AKD MX536AKH MX536AKN MX536AKQ.
MX536ASD TEMP. RANGE 0°C to +70°C 0°C.
