MX633 - CALL PROCRESS TONE DETECTOR

Microsemi Corporation

📥 Download Datasheet

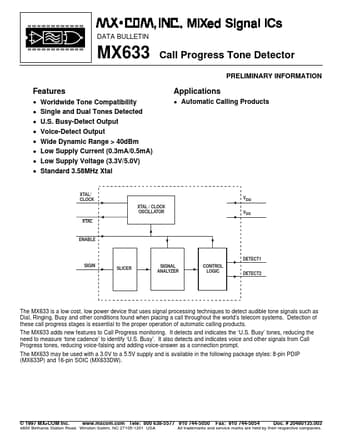

MX633 Datasheet Preview — Preview of MX633 PDF

Datasheet Details

Part number	MX633
Manufacturer	Microsemi Corporation
File Size	95.60 KB
Description	CALL PROCRESS TONE DETECTOR
Datasheet	MX633_MicrosemiCorporation.pdf

MX633 Product details

Description

6 4.1 Glossary 6 4.2 Overall Function Description 6 4.3 Block Diagram Description (Reference Figure 1) 6 4.3.1 Slicer 6 4.3.2 Signal Analyzer 6 4.3.3 Control Logic7 4.3.4 Xtal/Clock Oscillator7 4.4 Decode Output Truth Table 7 5. Performance Specification 7 5.1 Electrical Performance 7 5.1.1 Absolute Maximum Ratings 7 5.1.2 Operating Limits8 5.1.3 Operating Characteristics 8 5.1.4 Timing 9 5.2 Packaging 11 MX COM, Inc.

Features

Worldwide Tone Compatibility Single and Dual Tones Detected U. S. Busy-Detect Output Voice-Detect Output Wide Dynamic Range > 40dBm Low Supply Current (0.3mA/0.5mA) Low Supply Voltage (3.3V/5.0V) Standard 3.58MHz Xtal Call Progress Tone Detector.
