DS1621 Datasheet - Maxim Integrated

DS1621, Digital Thermometer

DS1621 Digital Thermometer and BENEFITS AND .

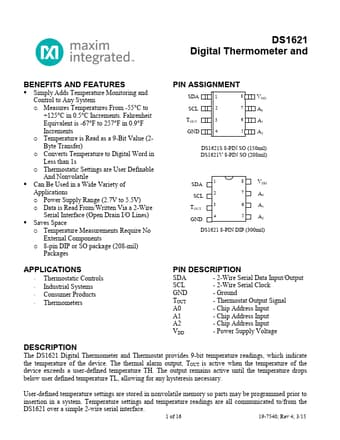

datasheet Preview Page 1 from Datasheet4u.com

DS1621-MaximIntegrated.pdf

DS1621 Datasheet Preview — Preview of DS1621 PDF

Datasheet Details

Part number:

DS1621

Manufacturer:

Maxim Integrated ↗

File Size:

434.61 KB

Description:

Digital Thermometer

Features

* Simply Adds Temperature Monitoring and Control to Any System o Measures Temperatures From -55°C to +125°C in 0.5°C Increments. Fahrenheit Equivalent is -67°F to 257°F in 0.9°F Increments o Temperature is Read as a 9-Bit Value (2Byte Transfer) o Converts Temperature to Digital Word in Less than

Applications

* o Power Supply Range (2.7V to 5.5V) o Data is Read From/Written Via a 2-Wire Serial Interface (Open Drain I/O Lines)
* Saves Space o Temperature Measurements Require No External Components o 8-pin DIP or SO package (208-mil) Packages PIN ASSIGNMENT SDA 1 8 SCL 2 7 TOUT GND 3 4 6 5 VDD
