DS1628

Octal TRI-STATE MOS Drivers

DS1628 Features

* Y Y Y Y Y Y High speed capabilities Typical 5 ns driving 50 pF 8 ns driving 500 pF TRI-STATE outputs High VOH (3 4V min) High density Eight drivers and two disable controls for TRI-STATE in a 20-pin package PNP inputs reduce DC loading on bus lines Glitch-free power up down bs ol TL F 5875

DS1628 General Description

The DS1628 DS3628 are octal Schottky memory drivers with TRI-STATE outputs designed to drive high capacitive loads associated with MOS memory systems The drivers’ output (VOH) is specified at 3 4V to provide additional noise immunity required by MOS inputs A PNP input structure is employed to minimi.

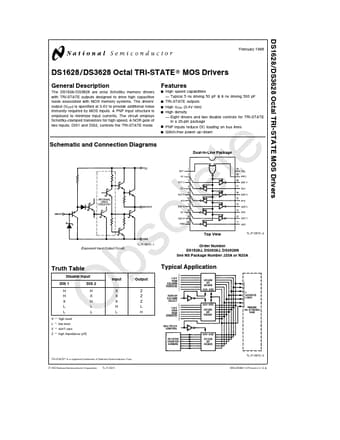

DS1628 Datasheet (383.90 KB)

Preview of DS1628 PDF

Datasheet Details

Part number:

DS1628

Manufacturer:

National Semiconductor

File Size:

383.90 KB

Description:

octal tri-state mos drivers.
