(DS16149 / DS16179) Hex MOS Drivers

DS16149 Features

* Y Y Y High speed capabilities  Typ 9 ns driving 50 pF  Typ 29 ns driving 500 pF Built-in 15 X damping resistor (DS16149 DS36149) Same pin-out as DM8096 and DM74366 Schematic Diagram TL F 7553

* 1 C1995 National Semiconductor Corporation TL F 7553 RRD-B30M105 Printed in U S A Absolu

DS16149 General Description

The DS16149 DS36149 and DS16179 DS36179 are Hex MOS drivers with outputs designed to drive large capacitive loads up to 500 pF associated with MOS memory systems PNP input transistors are employed to reduce input currents allowing the large fan-out to these drivers needed in memory systems The circu.

DS16149 Datasheet (153.26 KB)

Preview of DS16149 PDF

Datasheet Details

Part number:

DS16149

Manufacturer:

National Semiconductor

File Size:

153.26 KB

Description:

(ds16149 / ds16179) hex mos drivers.
www.DataSheet4U.com DS16149 DS36149 DS16179 DS36179 Hex MOS Drivers February 1986 DS16149 DS36149 DS16179 DS36179 Hex MOS Drivers General Descripti.

📁 Related Datasheet

DS161-40THD02 - SCHOTTKY BARRIER DIODE (JCET)
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD WBFBP-02L Plastic-Encapsulate Diodes DS161-40THD02 SCHOTTKY BARRIER DIODE WBFBP-02L FEATURES z L.

DS1610 - Partitioned NV Controller (Dallas Semiconducotr)
.. DS1610 Partitioned NV Controller .dalsemi. FEATURES Converts CMOS RAMs into nonvolatile memories SOIC version is pin-pa.

DS1615 - Temperature Recorder (Dallas Semiconducotr)
.. DS1615 Temperature Recorder .dalsemi. FEATURES Digital thermometer measures temperature -40°C to +85°C in 0.5°C increments.

DS1616 - Temperature and Three Input MUXed 8-bit Data Recorder (Dallas Semiconducotr)
.. PRELIMINARY DS1616 Temperature and Three Input MUX’ed 8-bit Data Recorder .dalsemi. FEATURES Measures four channels of da.

DS16179 - (DS16149 / DS16179) Hex MOS Drivers (National Semiconductor)
.. DS16149 DS36149 DS16179 DS36179 Hex MOS Drivers February 1986 DS16149 DS36149 DS16179 DS36179 Hex MOS Drivers General Descripti.

DS160-40THD02 - SCHOTTKY BARRIER DIODE (JCET)
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD WBFBP-02L Plastic-Encapsulate Diodes DS160-40THD02 SCHOTTKY BARRIER DIODE FEATURES z Low forward .

DS1602 - Elapsed Time Counter (Maxim Integrated)
. maxim-i c. DS1602 Elapsed Time Counter .maxim-ic. FEATURES § Two 32-bit counters keep track of real-time and elapsed time § Counters .

DS1603 - TRI-STATE Dual Receiver (National)
DS1603TRI-STATE Dual Receiver May 1999 DS1603 TRI-STATE ® Dual Receiver General Description The DS16033 is a dual differential TRI-STATE line receiv.

TAGS

DS16149 DS16149 DS16179 Hex MOS Drivers National Semiconductor

Image Gallery

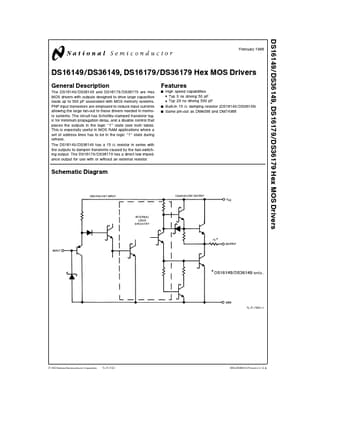

DS16149 Datasheet Preview Page 2 DS16149 Datasheet Preview Page 3
