DS161-40THD02 - SCHOTTKY BARRIER DIODE

DS161-40THD02 Description

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD WBFBP-02L Plastic-Encapsulate Diodes DS161-40THD02 SCHOTTKY BARRIER DIODE WBFBP-02L .

DS161-40THD02 Applications

* z Low voltage rectification z High efficiency DC-to-DC conversion z Switch mode power supply z LED backlight for mobile application z Low power consumption applications z Reverse polarity protection MARKING: BD MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol Parameter VRRM VRWM Peak

📥 Download Datasheet

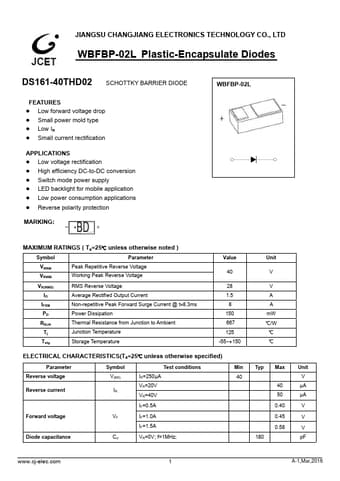

Preview of DS161-40THD02 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DS161-40THD02
Manufacturer
JCET
File Size
782.29 KB
Datasheet
DS161-40THD02-JCET.pdf
Description
SCHOTTKY BARRIER DIODE
