DS1610, Partitioned NV Controller

www.DataSheet4U.com DS1610 Partitioned NV Controller www.dalsemi.com .
VCCI VBAT1 VBAT2 VCCO GND CEI CEO WEI WEO TOL AW - AZ DIS PFO - Input +5 Volt Supply - + Battery 1 Input - + Battery 2 Input - RAM Power (VCC) Suppl.

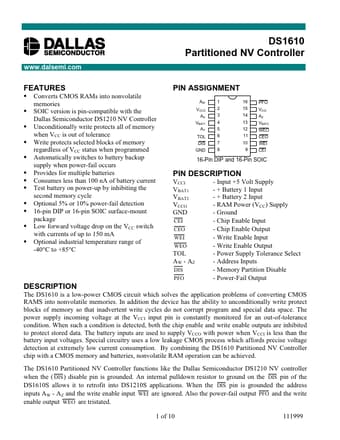

datasheet Preview Page 1 from Datasheet4u.com

DS1610_DallasSemiconducotr.pdf

DS1610 Datasheet Preview — Preview of DS1610 PDF

Datasheet Details

Part number:

DS1610

Manufacturer:

Dallas Semiconducotr

File Size:

127.83 KB

Description:

Partitioned NV Controller

Features

* Converts CMOS RAMs into nonvolatile memories SOIC version is pin-compatible with the Dallas Semiconductor DS1210 NV Controller Unconditionally write protects all of memory when VCC is out of tolerance Write protects selected blocks of memory regardless of VCC status when programmed Automatically swi

Applications

* When the DIS pin is grounded the address inputs AW - AZ and the write enable input WEI are ignored. Also the power-fail output PFO and the write enable output WEO are tristated. 1 of 10 111999 DS1610 OPERATION - DISABLE PIN CONNECTED TO VCCO The DS1610 performs five circuit functions required to
