DS16179, DS16149, (DS16149 / DS16179) Hex MOS Drivers

www.DataSheet4U.com DS16149 DS36149 DS16179 DS36179 Hex MOS Drivers February 1986 DS16149 DS36149 DS16179 DS36179 Hex MOS Drivers General Descripti.
The DS16149 DS36149 and DS16179 DS36179 are Hex MOS drivers with outputs designed to drive large capacitive loads up to 500 pF associated with MOS mem.

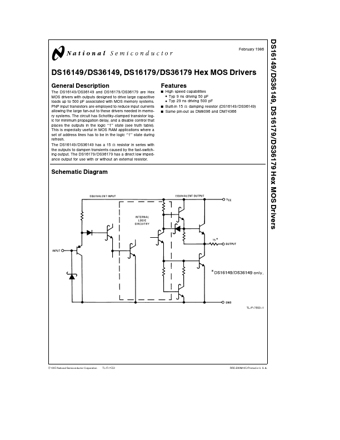

datasheet Preview Page 1 from Datasheet4u.com

DS16149_NationalSemiconductor.pdf

DS16179 Datasheet Preview — This datasheet PDF includes multiple part numbers: DS16179, DS16149. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DS16179, DS16149

Manufacturer:

National Semiconductor

File Size:

153.26 KB

Description:

(DS16149 / DS16179) Hex MOS Drivers

Note:

This datasheet PDF includes multiple part numbers: DS16179, DS16149.
Please refer to the document for exact specifications by model.

Features

* Y Y Y High speed capabilities Typ 9 ns driving 50 pF Typ 29 ns driving 500 pF Built-in 15 X damping resistor (DS16149 DS36149) Same pin-out as DM8096 and DM74366 Schematic Diagram TL F 7553
* 1 C1995 National Semiconductor Corporation TL F 7553 RRD-B30M105 Printed in U S A Absolu

Applications

* where a set of address lines has to be in the logic ‘’1’’ state during refresh The DS16149 DS36149 has a 15 X resistor in series with the outputs to dampen transients caused by the fast-switching output The DS16179 DS36179 has a direct low impedance output for use with or without an external resisto
