DS1616

Temperature and Three Input MUXed 8-bit Data Recorder

DS1616 Features

* Measures four channels of data:

* Integrated 8-bit temperature sensor,

* Integrated 8-bit Analog-to-Digital Converter (ADC) with a three input mux for measuring up to three external sensors Digital thermometer measures temperature -40°C to +85°C in 0.5°C increments (-40°F to +183.2°F

DS1616 General Description

Vbat X1 X2 AINx INSPEC OUTSPEC INT GND AGND ST RST I/O SCLK TX RX COMSEL VCC DS1616 DS1616S - Battery Supply - Crystal Input - Crystal Output - Analog in - In-specification Output - Out-of-specification Output - Interrupt Output - Digital Ground - Analog Ground - Start/Status Input - 3-wire Reset.

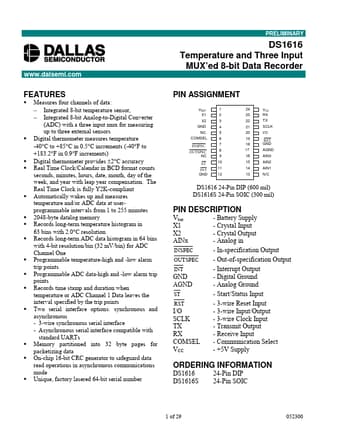

DS1616 Datasheet (221.24 KB)

Preview of DS1616 PDF

Datasheet Details

Part number:

DS1616

Manufacturer:

Dallas Semiconducotr

File Size:

221.24 KB

Description:

Temperature and three input muxed 8-bit data recorder.
