DS1629 - 2-Wire Digital Thermometer and Real-Time Clock

Maxim Integrated

The DS1629 by Maxim Integrated is a 2-Wire Digital Thermometer and Real-Time Clock. Below is the official datasheet preview.

📥 Download Datasheet

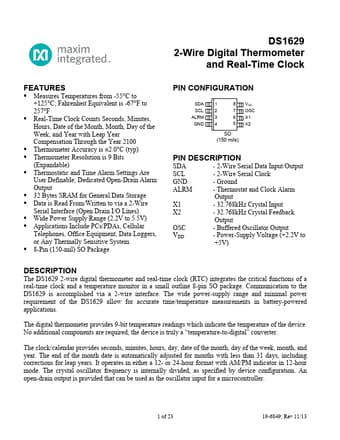

DS1629 2-Wire Digital Thermometer and Real-Time Clock by Maxim Integrated - Datasheet Preview — Official preview page of the **DS1629** 2-Wire Digital Thermometer and Real-Time Clock datasheet (Maxim Integrated).

Datasheet Details

Part number	DS1629
Manufacturer	Maxim Integrated
File Size	490.32 KB
Description	2-Wire Digital Thermometer and Real-Time Clock
Datasheet	DS1629-MaximIntegrated.pdf
Additional preview pages of the DS1629 datasheet.

DS1629 Product details

Description

SDA - 2-Wire Serial Data Input/Output SCL - 2-Wire Serial Clock GND - Ground ALRM - Thermostat and Clock Alarm Output X1 - 32.768kHz Crystal Input X2 - 32.768kHz Crystal Feedback Output OSC - Buffered Oscillator Output VDD - Power-Supply Voltage (+2.2V to +5V) DESCRIPTION The DS1629 2-wire digital thermometer and real-time clock (RTC) integrates the critical functions of a real-time clock and a temperature monitor in a small outline 8-pin SO package.Communication to the DS1629 i

Features

Measures Temperatures from -55°C to +125°C; Fahrenheit Equivalent is -67°F to 257°F.
Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap Year Compensation Through the Year 2100.
Thermometer Accuracy is ±2.0°C (typ).
Thermometer Resolution is 9 Bits (Expandable).
Thermostatic and Time Alarm Settings Are User Definable; Dedicated Open-Drain Alarm Output.
32 Bytes SRAM for General Data Storage.
Data is Rea.
