MAX16122

Dual Pushbutton Controllers

Maxim Integrated

MAX16122 Features

* Low Supply Current: < 5μA (typ) at 3V Over Temperature

* Precision Factory-Set VCC Monitoring Threshold for 1.8V, 2.5V, 3.3V, and 5V Supplies

* Fixed/Pin-Programmable or Resistor-Adjustable Pushbutton Setup Delay

* Up to 2 Reset Outputs and 2 Debounced Pushbutto

MAX16122 General Description

The MAX16122

*MAX16125 pushbutton controllers with single-supply monitors monitor one or two pushbuttons and generate a hard reset signal if the buttons are pushed and held for a setup delay. These devices make it easy to “hide” the hard reset function in an existing pushbutton, such as a sof.

MAX16122 Datasheet (892.73 KB)

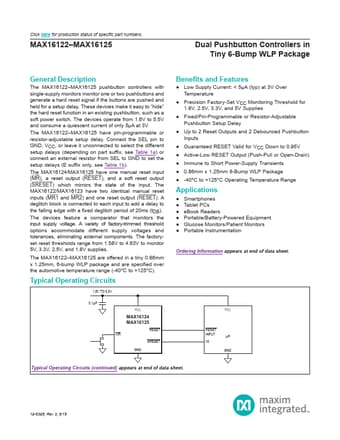

MAX16122 Datasheet Preview — Preview of MAX16122 PDF

Datasheet Details

Part number:

MAX16122

Manufacturer:

Maxim Integrated ↗

File Size:

892.73 KB

Description:

Dual pushbutton controllers.
Click here for production status of specific part numbers. MAX16122

*MAX16125 Dual Pushbutton Controllers in Tiny 6-Bump WLP Package General .
