MAX16134, MAX16132 Single/Dual/Triple/Quad-Voltage uP Supervisors

MAX16134 Description

MAX16132 *MAX16135 Low-Voltage, Precision, Single/Dual/Triple/ Quad-Voltage μP Supervisors General .
The MAX16132. MAX16135 are low-voltage, ±1% accurate, single, dual, triple, and quad-volta­ ge μP supervisors that monitor up to 4 system-suppl.

MAX16134 Features

* dual reset outputs. For the MAX16132
* MAX16134, a reset output asserts when the voltage at its corresponding input falls outside a factory-trimmed undervoltage and overvoltage window threshold. The reset is maintained for a minimum timeout period after voltage at the input falls within the fa

MAX16134 Applications

* The reset outputs are active-low, open-drain, and are guaranteed to be in the correct reset output logic state when VDD remains greater than 1.0V. All devices are offered with 23 reset timeout periods ranging from 20µs (min) to 1200ms (min). All reset outputs share the same factory-set reset timeou

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX16134, MAX16132. Please refer to the document for exact specifications by model.

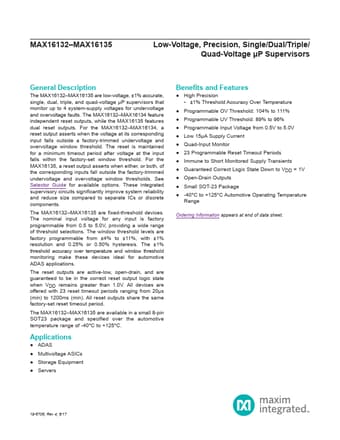

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX16134, MAX16132
Manufacturer
Maxim Integrated ↗
File Size
576.80 KB
Datasheet
MAX16132-MaximIntegrated.pdf
Description
Single/Dual/Triple/Quad-Voltage uP Supervisors
Note
This datasheet PDF includes multiple part numbers: MAX16134, MAX16132.
Please refer to the document for exact specifications by model.
